上海般諾生物科技有限公司是專門生產各種離心蒸發濃縮設備的公司，其產品普遍應用于生命科學、化學、分析等領域。

Shanghai Bannuo Biotechnology Co., Ltd. is a company specializing in the production of various of centrifugal evaporation and concentration equipment. Its products are widely used in life science, chemistry, analysis and other fields.

Bionoon  真空離心濃縮的【工作原理】【W(wǎng)orking principle】

當壓力降低時，溶劑的沸點也隨著降低。當壓力降到一定程度時，在比較低的溫度條件下，溶劑便可以沸騰蒸發。為了避免樣品的蒸發和交叉污染，采用高速離心旋轉技術，保證樣品處于樣品管中不會噴出。

The boiling point of the solvent decreases with the decreases of the pressure. When the pressure drops to a certain level, the solvent can boil and evaporate at a relatively low temperature. In order to avoid sample evaporation and cross-contamination, high-speed centrifugal rotation technology is used to ensure that the sample is in the sample tube and will not be ejected.

Bionoon 真空離心濃縮【技術優勢】【Technical Advantages】

高通量：同時可處理幾十到上百個樣品，無交叉污染現象。

High-throughput : Dozens to hundreds of samples can be processed at the same time without cross-contamination.

低溫濃縮：避免樣本丟失、變性、活性下降、氧化。

Low-temperature concentration : avoid sample loss, denaturation, activity decline, and oxidation.
損失少：樣品不產生泡沫，損失較少得到率高。

Less loss: The sample does not produce foam, so that the loss is less and the yield is high.

安全簡單：一健操作，安全便捷，避免誤操作。

Safe and simple : One-key operation, safe and convenient, avoid misoperation.

Bionoon 真空離心濃縮【應用范圍】【Scope of Application】

⊙寡聚合物和肽Oligomers and peptides             ⊙有機底物的合成和分離Synthesis and separation of organic substrates

⊙RNA/DNA研究  RNA/DNA research                 ⊙ 臨床診斷Clinical diagnostics

⊙ADMET（藥物代謝研究）ADMET (Drug Metabolism Research)           ⊙蛋白質結晶學Protein Crystallography

⊙藥物分析、藥物化學Pharmaceutical analysis, medicinal chemistry         ⊙通用實驗室濃縮General laboratory enrichment

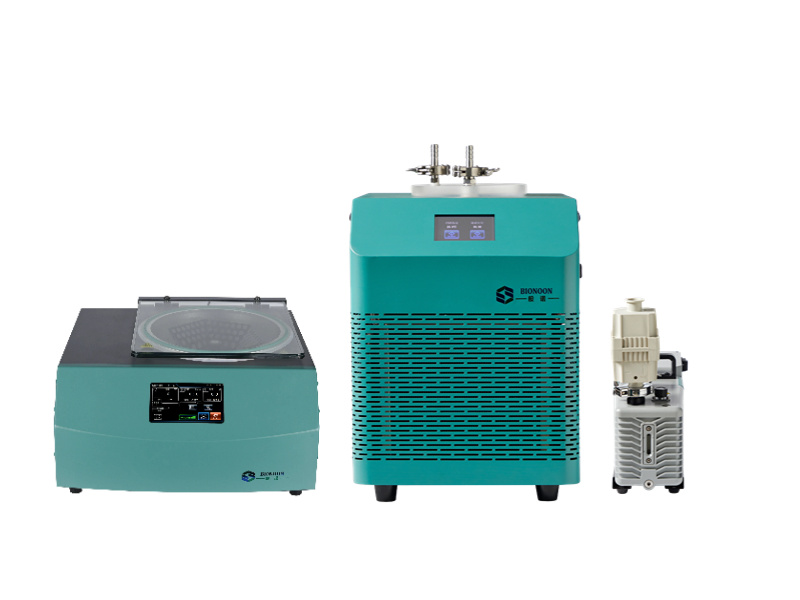

Bionoon VAC-RP2 真空冷凍離心濃縮儀Vacuum Refrigerated Centrifugal Concentrator

上海般諾的Bionoon VAC-RP2 真空冷凍離心濃縮儀，專為熱敏性樣品濃縮研發，為全方位服務顧客，Bionoon VAC-RP2 型號采用組合搭配方式，除真空冷凍離心濃縮儀主機外，另配備5L大體積冷阱及真空泵，提供一次性解決方案。使用時可根據樣品量選配不同型號的轉子及EP管、玻璃試管、各種離心管、色譜瓶、離心瓶或96孔板等。

The Bionoon VAC-RP2 vacuum refrigerated centrifugal concentrator is specially designed for the concentration of heat-sensitive samples. To meet customers’ need , the Bionoon VAC-RP2 model adopts a combination and matching style that is beside the host of vacuum refrigerated centrifugal concentrator, it also has a large volume cold trap and a vacuum pump, which can provide our customer a one-off solution in an all- round way. Different types of rotors, EP tubes, glass test tubes, various centrifuge tubes, chromatography bottles, centrifuge bottles or 96-well plates can be selected according to the sample volume.

Bionoon VAC-RP2 真空冷凍離心濃縮儀【產品特點】【Product Features】

1.該組合包含：主機1臺+5L大體積冷阱+真空泵，客戶可整體采購，性價比高且提供一次性解決方案；

The combination includes: 1 host +1 5L large-volume cold trap + 1 vacuum pump. Customers may purchase it as a whole for its cost-effective and can provide a one-time solution;

2.冷凍款，支持低溫濃縮，溫度范-10℃～100℃，0.1℃遞增，有效保護熱敏性生物樣品；

 Freezing type, supports low-temperature concentration. The temperature range is-10°C ~ 100°C, with 0.1°C increments, which effectively protecting heat-sensitive biological samples;

3.采用創意集成式冷阱泵，節省空間，更美觀；

Adopt creative integrated cold trap pump, saving space and more beautiful;

4.快插式轉子，一體成型，易更換、更耐用；

The quick-plug rotor is integrally formed, easy to replace and more durable;

5.防化學腐蝕離心腔，耐酸堿，一體成型，R角度圓弧設計，易清洗；

Anti-chemical corrosion centrifugal chamber of acid and alkali resistance, which is one-piece molding with R angle arc design that would be easy to clean;

6.交流變頻免維護感應電機，電磁驅動離心系統，噪聲小，免維護。

AC frequency conversion maintenance-free induction motor has an electromagnetic drive centrifugal system, which can make less noise and maintenance-free.

7.一鍵啟動功能，整個流程一氣呵成，自動化程度高；

One-button start function can complete the whole process in one go with a high degree of automation;

8.內置32組不同程序，可根據不同樣品，任意調用；

 Built-in 32 sets of different programs, which can be called arbitrarily according to different samples;

9.樣品腔五段溫度控制設計，有效保護樣品安全 ；

The five-stage temperature control design of the sample chamber effectively protects the safety of the sample;

10.7英寸觸摸屏顯示：設備運行狀況，程序組號、設定及實際轉速，設定及實際溫度，設定時間及運行時間.

7-inch touch screen displays: equipment operating status, program group number, set and actual speed, set and actual temperature, set time and running time.

Bionoon VAC-RP2 真空冷凍離心濃縮儀【技術參數】【 Technical Parameters】
